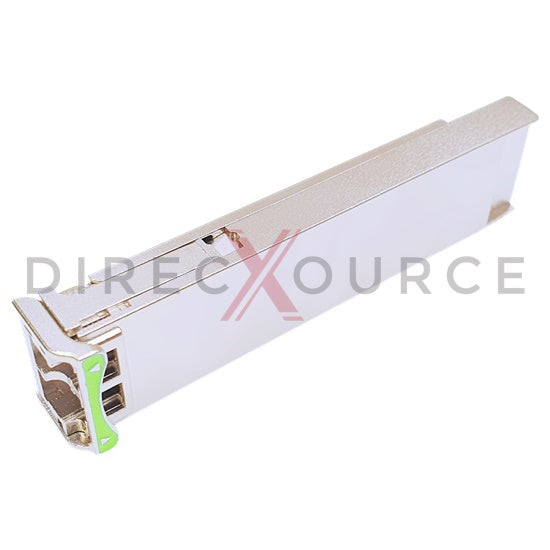

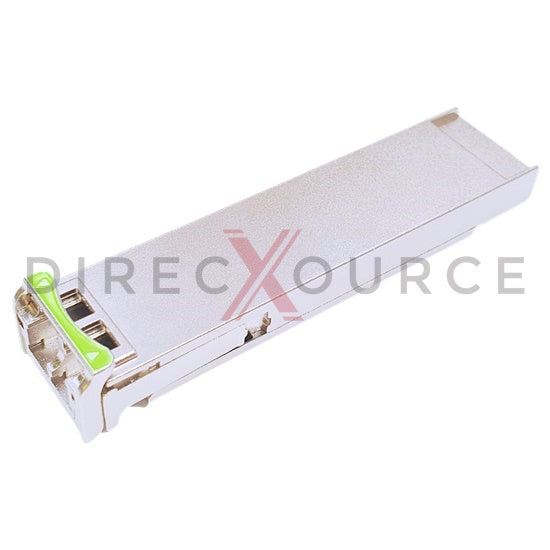

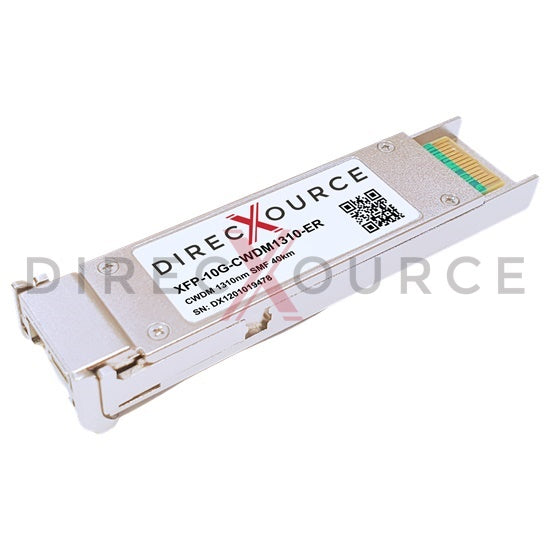

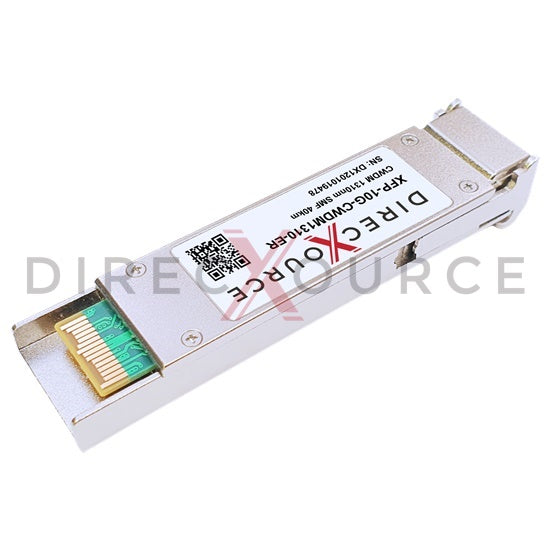

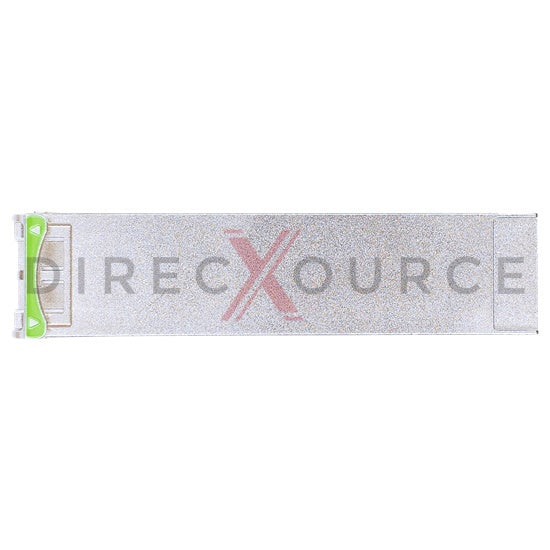

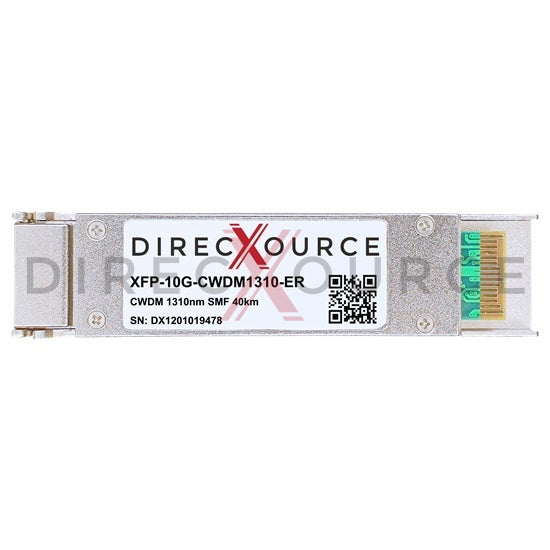

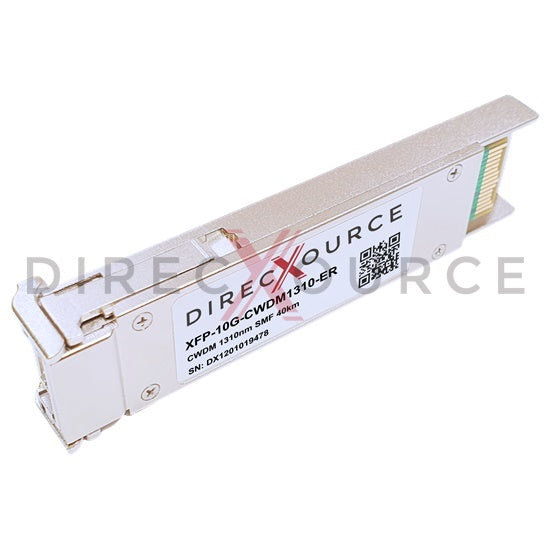

Cisco ONS-XC-10G-1310 Compatible 10GBASE-CWDM XFP 1310nm 40km SMF LC DOM Optical Transceiver Module


Cisco ONS-XC-10G-1310 compatible optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP CWDM module for use in 10GBASE Ethernet. XFP CWDM1310-ER provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-CWDM and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable CWDM DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco ONS-XC-10G-1310 transceivers.


Feature

  • Equivalent to Cisco ONS-XC-10G-1310 in function
  • Hot pluggable XFP form factor
  • Data rate up to 10.3Gbps
  • 1310nm CWDM DFB transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 40km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 2.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8077i
  • Compliant with IEEE 802.3 10GBASE-CWDM
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G SONET/SDH

Specification

Cisco Compatible P/N ONS-XC-10G-1310 Form Factor XFP
Max Data Rate 10.3Gbps Max Distance 40km (24.9 miles)
Wavelength 1310nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type CWDM DFB Receiver Type PIN
Transmitter Power -1.8 to 4.0dBm Receiver Sensitivity < -15.8dBm
Extinction Ratio 3.5dB Receiver Overload 0.5dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 14dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 2.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
