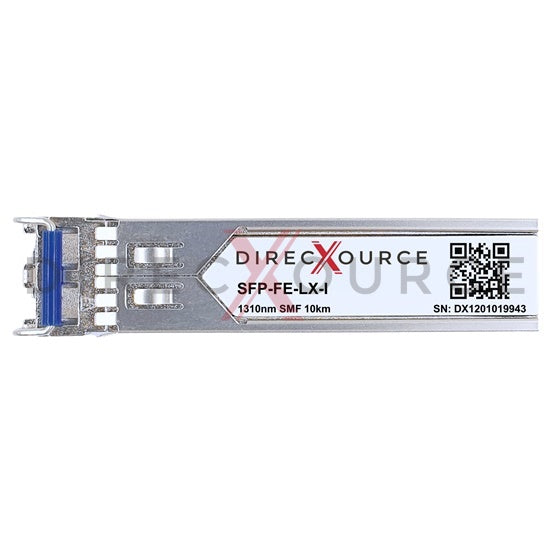

Cisco GLC-FE-100LX-RGD Compatible Industrial 100BASE-LX SFP 1310nm 10km SMF LC DOM Optical Transceiver Module
Cisco GLC-FE-100LX-RGD compatible optical transceiver is an industrial dual fiber 100Mbps Small Form-factor Pluggable SFP module for use in 100BASE Ethernet. SFP LX-I provides 100Mb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with SFP Multi-Source Agreement (MSA), IEEE 802.3u 100BASE-LX and SERDES standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP transceiver features highly reliable FP transmitter and PIN photo detector to offer high performance interconnection at 100M bps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco GLC-FE-100LX-RGD transceivers.
Feature
- Equivalent to Cisco GLC-FE-100LX-RGD in function
- Hot pluggable SFP form factor
- Data rate up to 100Mbps
- 1310nm FP transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 10km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 0.6W
- Ambient temperature range -40 to 85°C for industrial application
- Compliant with INF-8074i, SFF-8472
- Compliant with IEEE 802.3u 100BASE-LX
- Compliant with RoHS, REACH, CE, FCC standards
Application
- Fast Ethernet
Specification
Cisco Compatible P/N | GLC-FE-100LX-RGD | Form Factor | SFP |
Max Data Rate | 100Mbps | Max Distance | 10km (6.2 miles) |
Wavelength | 1310nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | FP | Receiver Type | PIN |
Transmitter Power | -15 to -8dBm | Receiver Sensitivity | < -32.5dBm |
Extinction Ratio | 9dB | Receiver Overload | 0dBm |
Modulation Format | NRZ | Power Budget | 17.5dB |
Power Consumption | 0.6W | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
