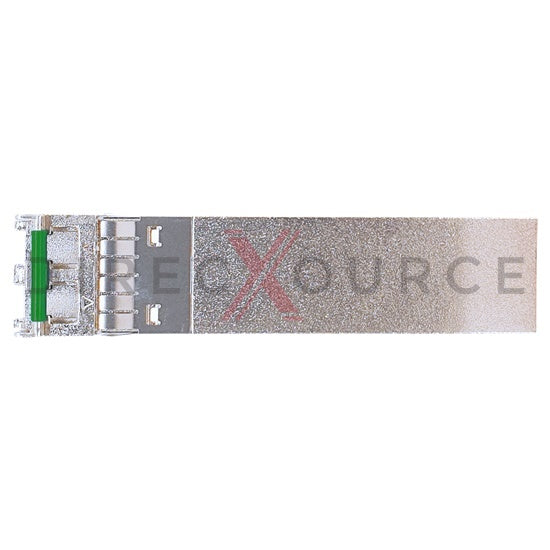

Cisco DWDM-SFP10G-63.05-80-I Compatible Industrial 10GBASE-DWDM SFP+ 100GHz C18 1563.05nm 80km SMF LC DOM Optical Transceiver Module

Original price $629.00
Current price $377.00
SKU

Compatible Brand Options

Cisco Compatible Industrial 10G DWDM SFP+ Transceiver Series

Cisco DWDM-SFP10G-63.05-80-I Compatible Industrial 10GBASE-DWDM SFP+ 100GHz C18 1563.05nm 80km SMF LC DOM Optical Transceiver Module


Cisco DWDM-SFP10G-63.05-80-I compatible optical transceiver is an industrial dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ DWDM module for use in 10GBASE Ethernet. SFP+ DWDM6305-ZR-I provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1563.05nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DWDM EML transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco DWDM-SFP10G-63.05-80-I transceivers.


Feature

  • Equivalent to Cisco DWDM-SFP10G-63.05-80-I in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • C18 1563.05nm DWDM EML transmitter
  • APD photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 80km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Ambient temperature range -40 to 85°C for industrial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3 10GBASE-DWDM
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

Cisco Compatible P/N DWDM-SFP10G-63.05-80-I Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 80km (49.7 miles)
Wavelength 1563.05nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type DWDM EML Receiver Type APD
Transmitter Power 0 to 4dBm Receiver Sensitivity < -23dBm
Extinction Ratio 9dB Receiver Overload -6dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 23dB
OE Packaging Box Packaging Modulation Format NRZ
Power Consumption 1.5W Industrial Temperature Range -40 to 85°C (-40 to 185°F)
