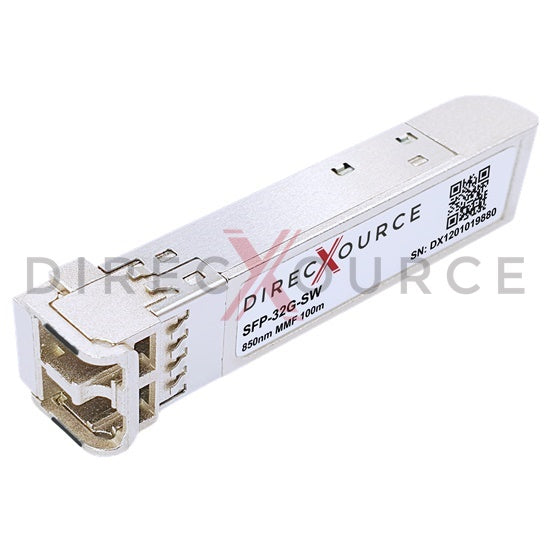

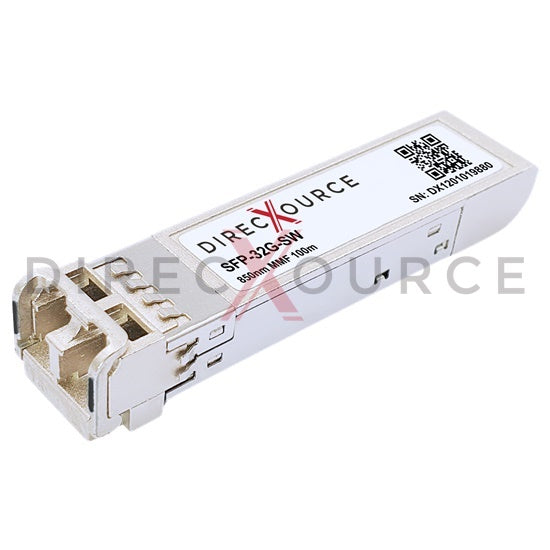

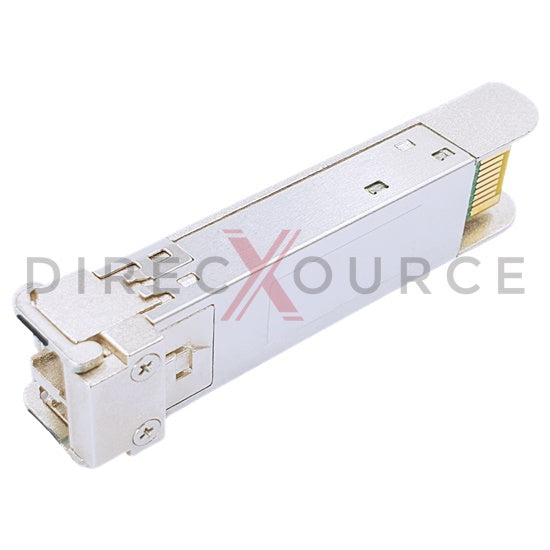

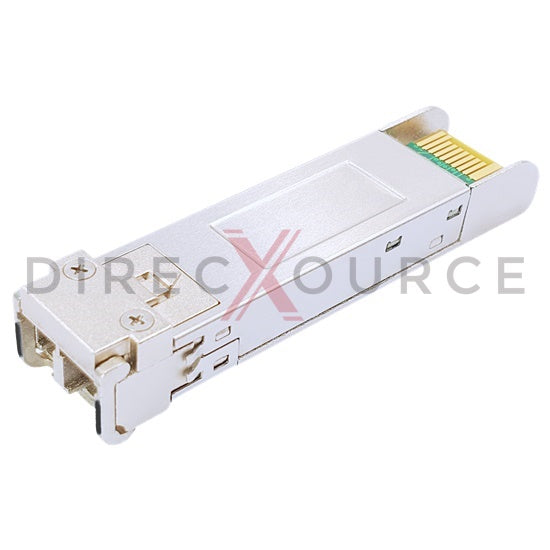

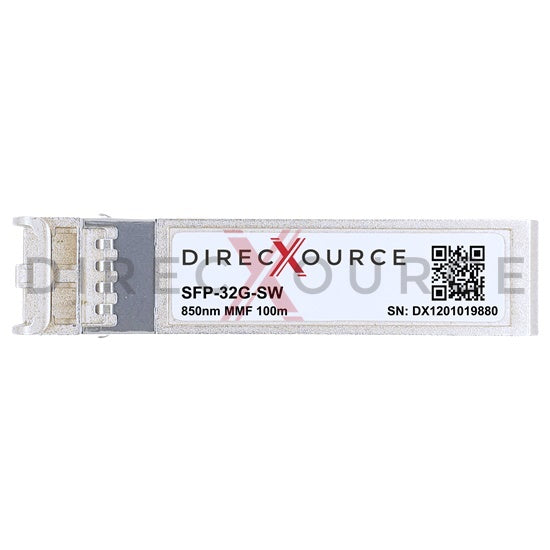

Cisco DS-SFP-FC32G-SW Compatible 32G Fibre Channel SFP28 850nm 100m MMF LC DOM Optical Transceiver Module

Cisco DS-SFP-FC32G-SW Compatible 32G Fibre Channel SFP28 850nm 100m MMF LC DOM Optical Transceiver Module

Cisco DS-SFP-FC32G-SW compatible optical transceiver is a dual fiber 28.1Gbps Small Form-factor Pluggable SFP28 module for use in 32G Fibre Channel Network. SFP28 32G-SW provides 28Gb/s throughput up to 100 meters over OM4 multi-mode fiber (MMF) with host FEC using 850nm wavelength. This transceiver is fully compliant with SFP28 Multi-Source Agreement (MSA) and FCIA FC-PI-6 3200-M5F-SN-I standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP28 transceiver features highly reliable VCSEL transmitter and PIN photo detector to offer high performance interconnection at 28 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Cisco DS-SFP-FC32G-SW transceivers.

Feature

• Equivalent to Cisco DS-SFP-FC32G-SW in function
• Hot pluggable SFP28 form factor
• Data rate up to 28.1Gbps
• 850nm VCSEL transmitter
• PIN photo receiver
• Duplex LC optical connector
• Link distances up to MMF 100m
• Internal CDR on both Transmitter and Receiver channels
• Built-in digital diagnostic via 2-wire interface
• Single 3.3V power supply voltage
• Power consumption < 1.2W
• Ambient temperature range 0 to 70°C for commercial application
• Compliant with SFF-8402, SFF-8432, SFF-8472
• Compliant with FCIA FC-PI-6 3200-M5F-SN-I
• Compliant with RoHS, REACH, CE, FCC standards

Application

• 32G Fibre Channel

Specification
