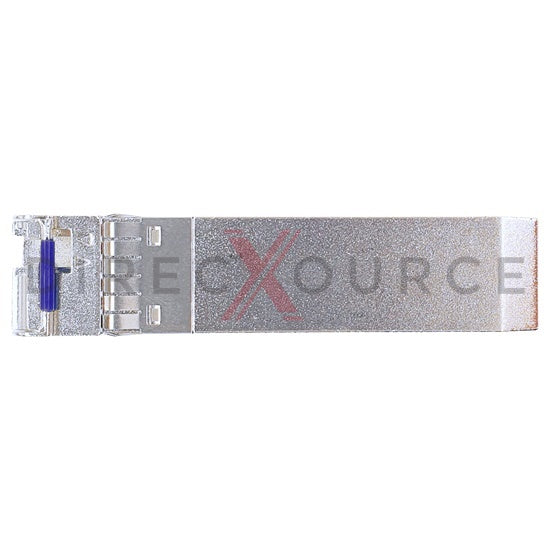

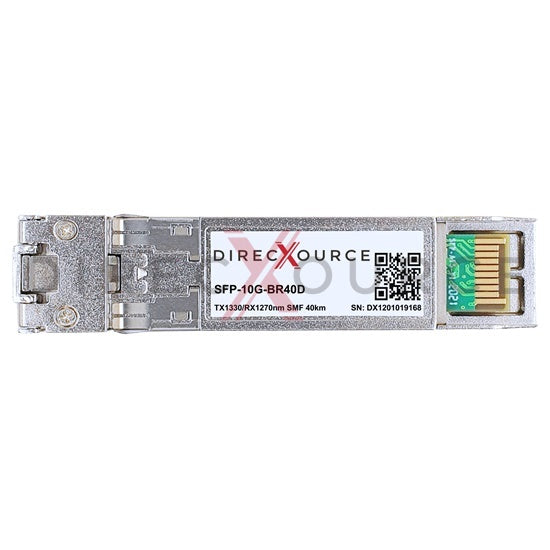

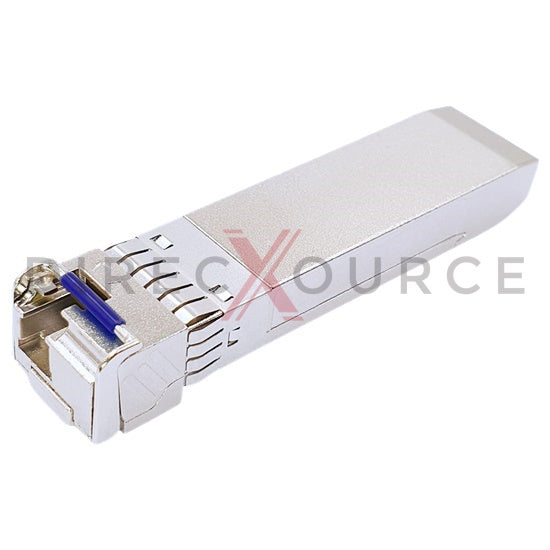

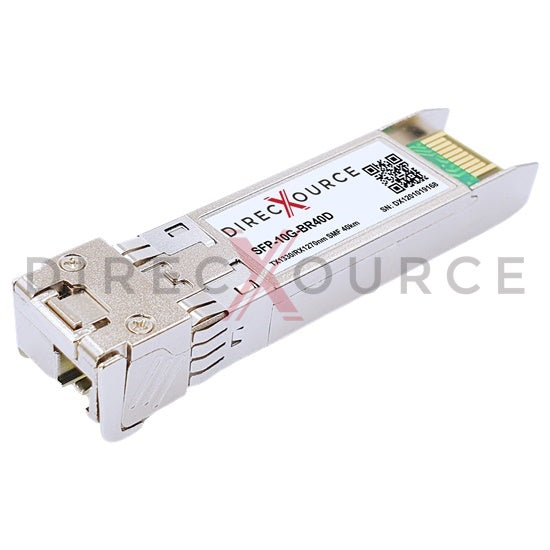

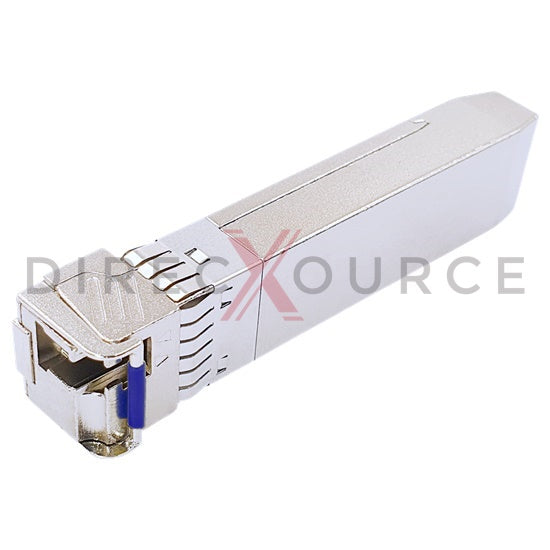

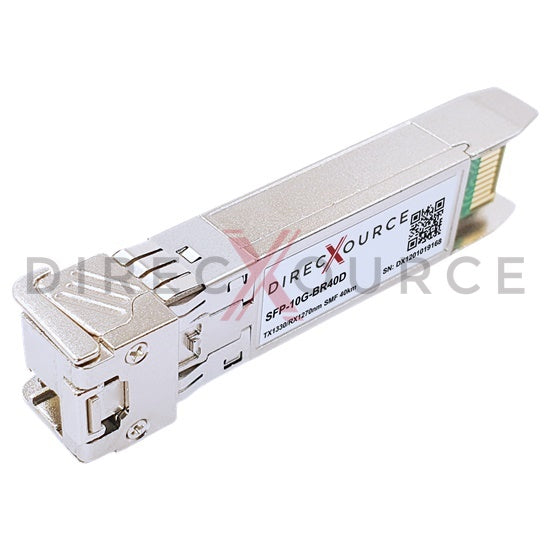

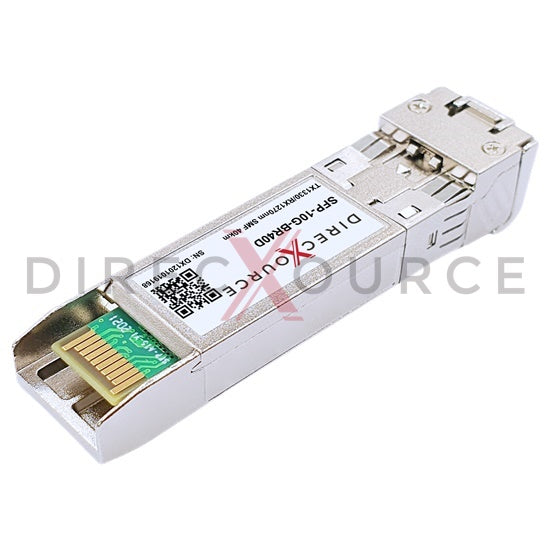

Ciena XCVR-S40U33 Compatible 10GBASE-BR BIDI SFP+ TX1330nm/RX1270nm 40km SMF LC DOM Optical Transceiver Module

Original price $84.00
Current price $50.00
SKU

Ciena XCVR-S40U33 Compatible 10GBASE-BR BIDI SFP+ TX1330nm/RX1270nm 40km SMF LC DOM Optical Transceiver Module


Ciena XCVR-S40U33 compatible optical transceiver is a single fiber bidirection 10.3Gbps Small Form-factor Pluggable SFP+ BIDI module for use in 10GBASE Ethernet. SFP+ BR40D provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using 1330nm in transmitter side and 1270nm in receiver side. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR40 and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP+ transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Ciena XCVR-S40U33 transceivers.


Feature

  • Equivalent to Ciena XCVR-S40U33 in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • 1330nm DFB transmitter
  • PIN photo receiver
  • Simplex LC optical connector
  • Link distances up to SMF 40km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3 10GBASE-BR40
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

Ciena Compatible P/N XCVR-S40U33 Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 40km (24.9 miles)
Wavelength TX1330nm/RX1270nm Connector Simplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type PIN
Transmitter Power 1 to 5dBm Receiver Sensitivity < -15dBm
Extinction Ratio 3.5dB Receiver Overload 0.5dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 16dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 1.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
