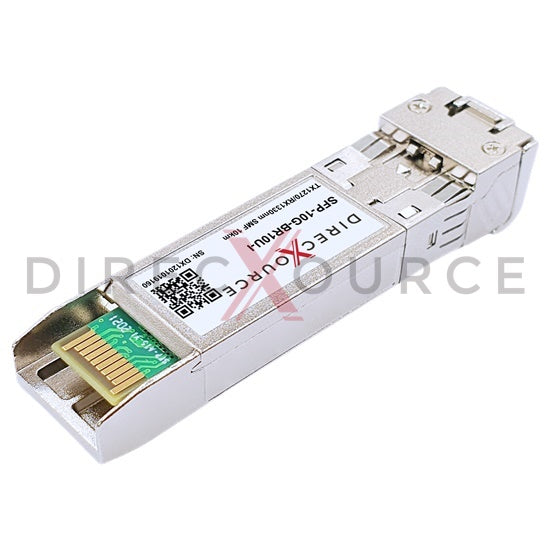

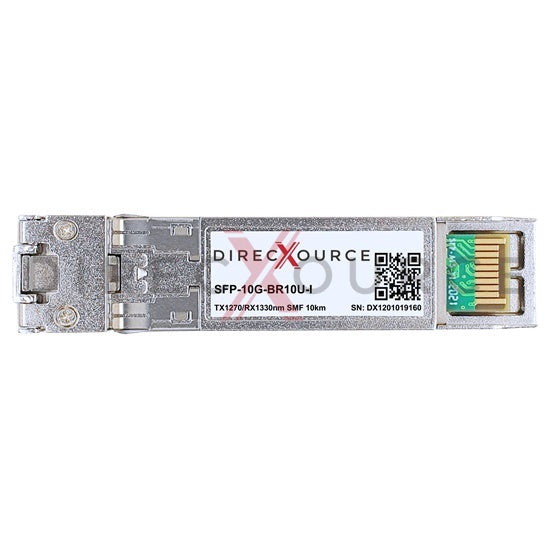

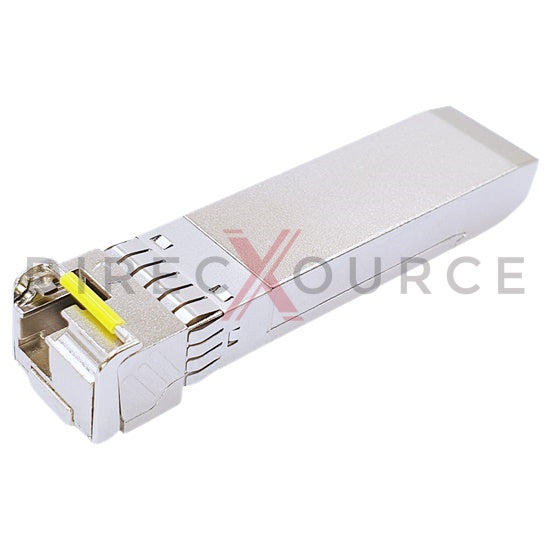

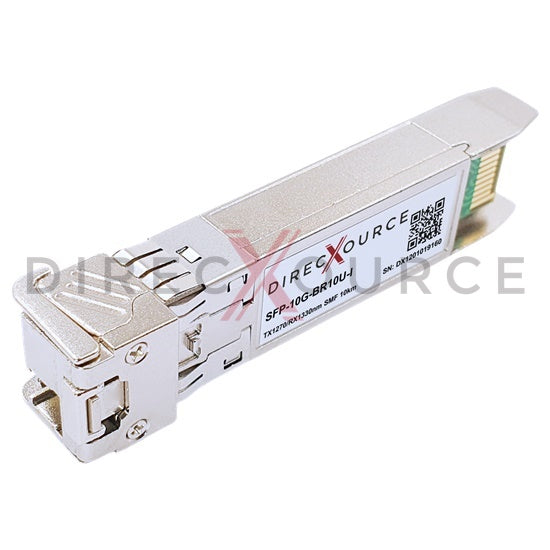

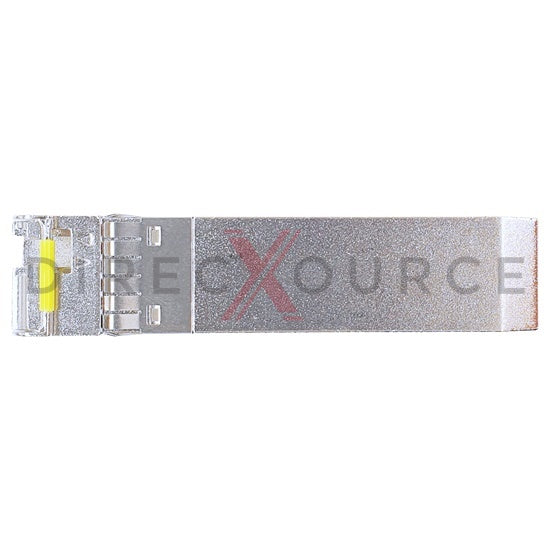

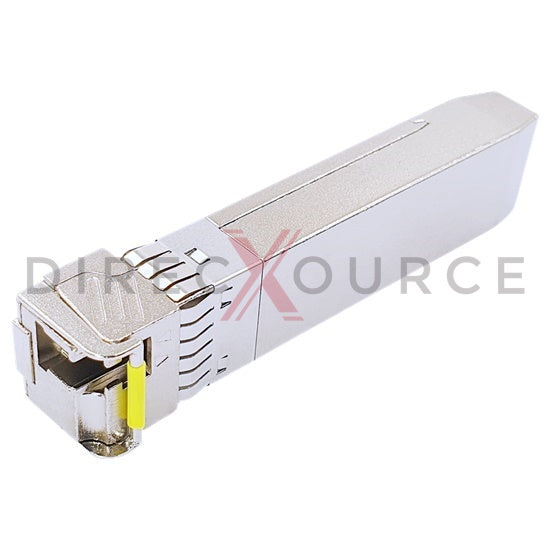

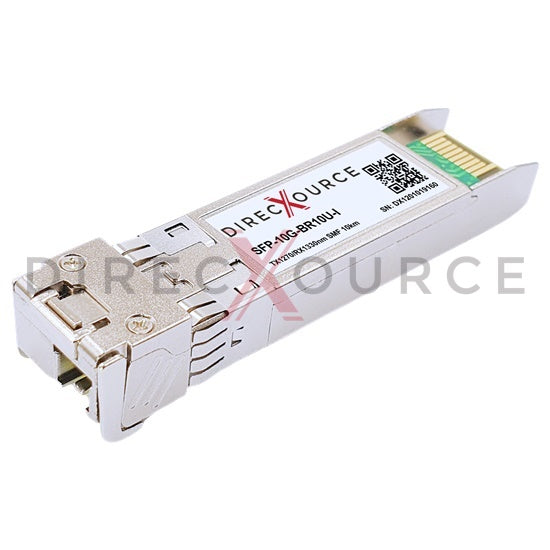

Ciena XCVR-S10U27-I Compatible Industrial 10GBASE-BR BIDI SFP+ TX1270nm/RX1330nm 10km SMF LC DOM Optical Transceiver Module

Original price $85.00
Current price $51.00
SKU

Compatible Brand Options

Ciena Compatible Industrial 10G BIDI SFP+ Transceiver Series

Ciena XCVR-S10U27-I Compatible Industrial 10GBASE-BR BIDI SFP+ TX1270nm/RX1330nm 10km SMF LC DOM Optical Transceiver Module


Ciena XCVR-S10U27-I compatible optical transceiver is an industrial single fiber bidirection 10.3Gbps Small Form-factor Pluggable SFP+ BIDI module for use in 10GBASE Ethernet. SFP+ BR10U-I provides 10Gb/s throughput up to 10km over single-mode fiber (SMF) using 1270nm in transmitter side and 1330nm in receiver side. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-BR10 and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Simplex LC connector. The full-duplex SFP+ transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Ciena XCVR-S10U27-I transceivers.


Feature

  • Equivalent to Ciena XCVR-S10U27-I in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • 1270nm DFB transmitter
  • PIN photo receiver
  • Simplex LC optical connector
  • Link distances up to SMF 10km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Ambient temperature range -40 to 85°C for industrial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3 10GBASE-BR10
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

Ciena Compatible P/N XCVR-S10U27-I Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 10km (6.2 miles)
Wavelength TX1270nm/RX1330nm Connector Simplex LC
DDM/DOM Support Media SMF
Transmitter Type DFB Receiver Type PIN
Transmitter Power -8.2 to 0.5dBm Receiver Sensitivity < -14.4dBm
Extinction Ratio 3.5dB Receiver Overload 0.5dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 6.2dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 1.5W Industrial Temperature Range -40 to 85°C (-40 to 185°F)
