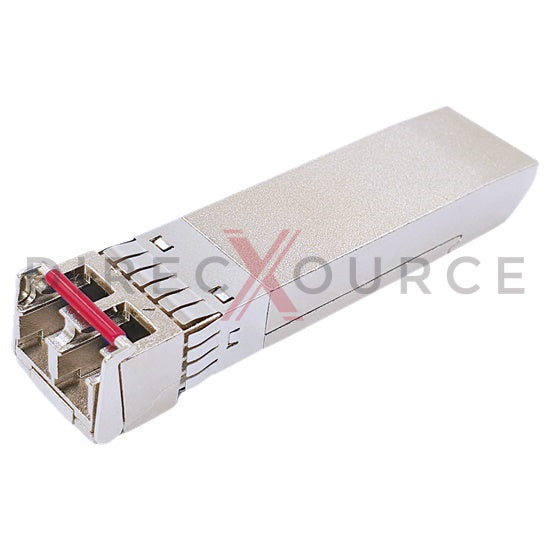

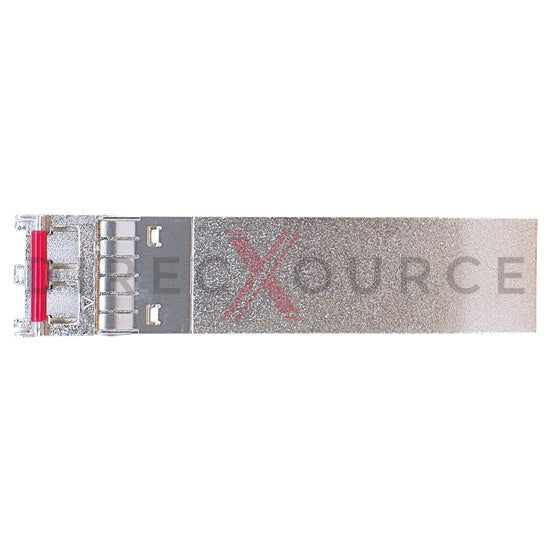

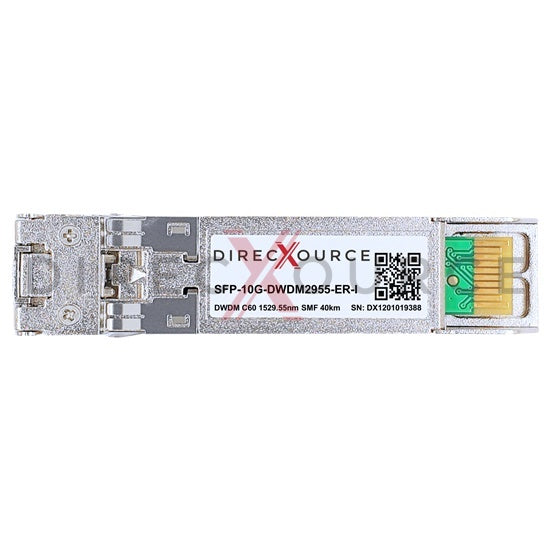

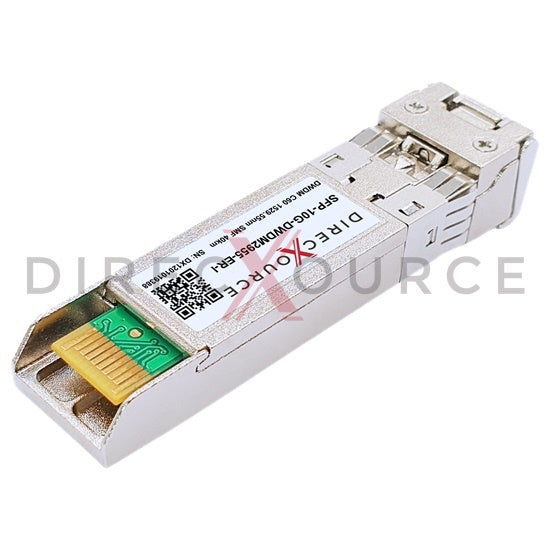

Ciena DWDM-SFP10G-29.55-40-I Compatible Industrial 10GBASE-DWDM SFP+ 100GHz C60 1529.55nm 40km SMF LC DOM Optical Transceiver Module
Ciena DWDM-SFP10G-29.55-40-I compatible optical transceiver is an industrial dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ DWDM module for use in 10GBASE Ethernet. SFP+ DWDM2955-ER-I provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using 1529.55nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DWDM EML transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Ciena DWDM-SFP10G-29.55-40-I transceivers.
Feature
- Equivalent to Ciena DWDM-SFP10G-29.55-40-I in function
- Hot pluggable SFP+ form factor
- Data rate up to 10.3Gbps
- C60 1529.55nm DWDM EML transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 40km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 1.5W
- Ambient temperature range -40 to 85°C for industrial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3 10GBASE-DWDM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G Fibre Channel
- 10G CPRI
- 10G SONET/SDH
Specification
Ciena Compatible P/N | DWDM-SFP10G-29.55-40-I | Form Factor | SFP+ |
Max Data Rate | 10.3Gbps | Max Distance | 40km (24.9 miles) |
Wavelength | 1529.55nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DWDM EML | Receiver Type | PIN |
Transmitter Power | -1 to 4dBm | Receiver Sensitivity | < -16dBm |
Extinction Ratio | 8.2dB | Receiver Overload | -1dBm |
Transmit and Dispersion Penalty | 2dB | Power Budget | 15dB |
OE Packaging | Box Packaging | Modulation Format | NRZ |
Power Consumption | 1.5W | Industrial Temperature Range | -40 to 85°C (-40 to 185°F) |
