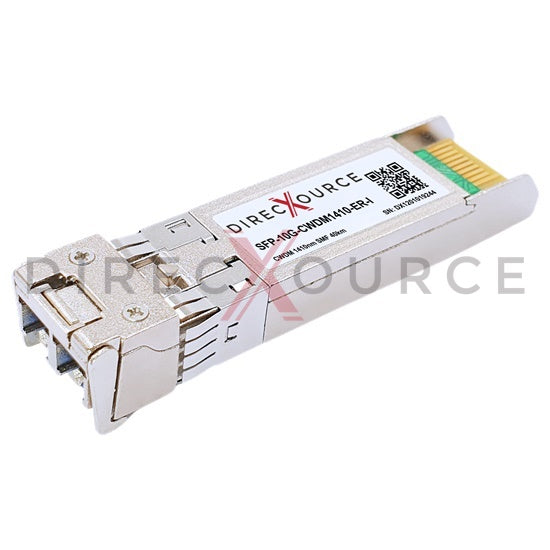

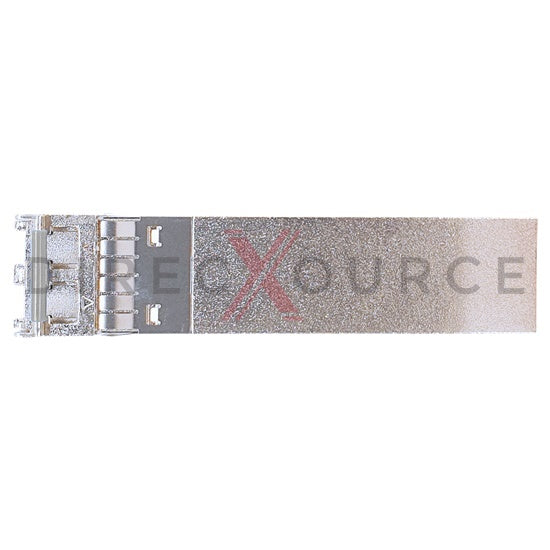

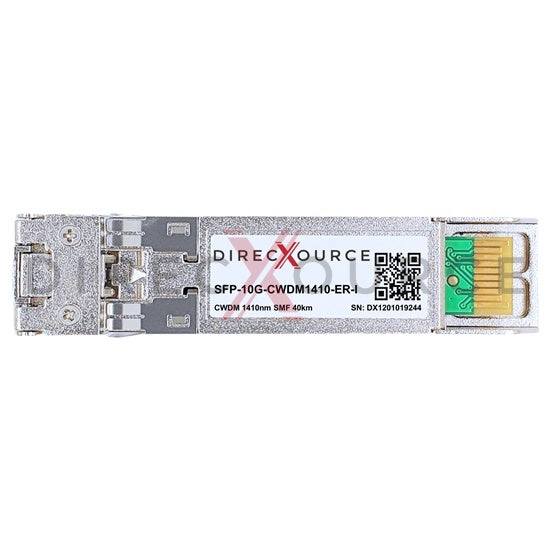

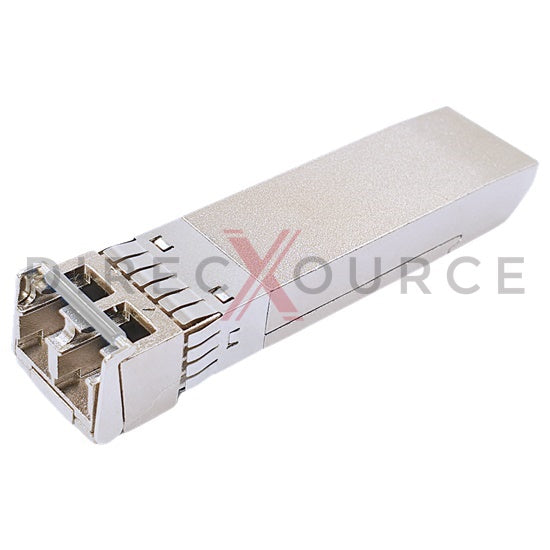

Ciena CWDM-SFP10G-1410-40-I Compatible Industrial 10GBASE-CWDM SFP+ 1410nm 40km SMF LC DOM Optical Transceiver Module

Original price $380.00
Current price $228.00
SKU

Ciena CWDM-SFP10G-1410-40-I Compatible Industrial 10GBASE-CWDM SFP+ 1410nm 40km SMF LC DOM Optical Transceiver Module


Ciena CWDM-SFP10G-1410-40-I compatible optical transceiver is an industrial dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ CWDM module for use in 10GBASE Ethernet. SFP+ CWDM1410-ER-I provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using 1410nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-CWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable CWDM EML transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Ciena CWDM-SFP10G-1410-40-I transceivers.


Feature

  • Equivalent to Ciena CWDM-SFP10G-1410-40-I in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • 1410nm CWDM EML transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 40km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Ambient temperature range -40 to 85°C for industrial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3 10GBASE-CWDM
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

Ciena Compatible P/N CWDM-SFP10G-1410-40-I Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 40km (24.9 miles)
Wavelength 1410nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type CWDM EML Receiver Type PIN
Transmitter Power 0 to 5dBm Receiver Sensitivity < -16dBm
Extinction Ratio 3.5dB Receiver Overload 0.5dBm
Transmit and Dispersion Penalty 3.2dB Power Budget 16dB
OE Packaging Coaxial Packaging Modulation Format NRZ
Power Consumption 1.5W Industrial Temperature Range -40 to 85°C (-40 to 185°F)
