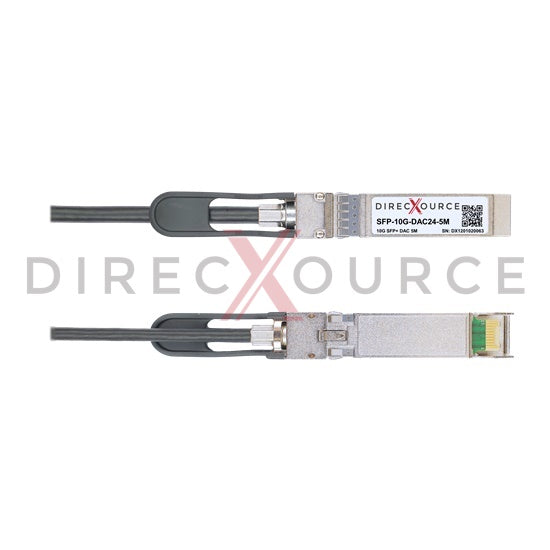

5m (16.4ft) Avaya Nortel AA1403020-E6 Compatible 10G SFP+ Passive Direct Attach Twinax Copper Cable

Original price $32.00
Current price $19.00
SKU

5m (16.4ft) Avaya Nortel AA1403020-E6 Compatible 10G SFP+ Passive Direct Attach Twinax Copper Cable


Avaya Nortel AA1403020-E6 compatible DAC is a passive 10Gbps SFP+ to SFP+ direct attach cable for use in 10GBASE Ethernet. SFP+ DAC provides 10Gb/s throughput for 5m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 7 meters. This DAC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The twin-axial copper cable's wire gauge is 24AWG and pre-terminated with MSA compliant 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to original Avaya Nortel AA1403020-E6 direct attach cables.


Feature

  • Equivalent to Avaya Nortel AA1403020-E6 in function
  • Hot Pluggable SFP+ to SFP+ Topology
  • Data rate up to 10.3Gbps
  • Pre-terminated 24AWG twin-axial copper cable
  • 10.3125Gbps SFI electrical interface
  • Minimum bending radius 30mm
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Extremely low power consumption near 0W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3ae 10GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • Data Center

Specification

Avaya Nortel Compatible P/N AA1403020-E6 Topology SFP+ to SFP+
Max Data Rate 10Gbps Cable Length 5m (16.4ft)
Cable Type Twinax Wire Gauge 24AWG
Jacket Meterial OFNR (PVC) Minimum Bend Radius 30mm
Power Consumption 0W Commercial Temperature Range 0 to 70°C (32 to 158°F)
