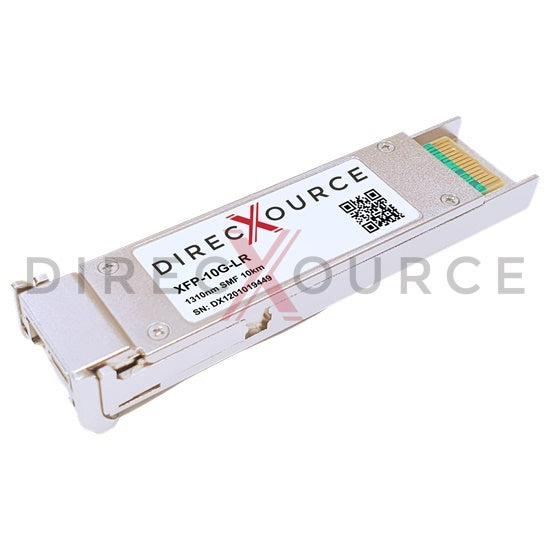

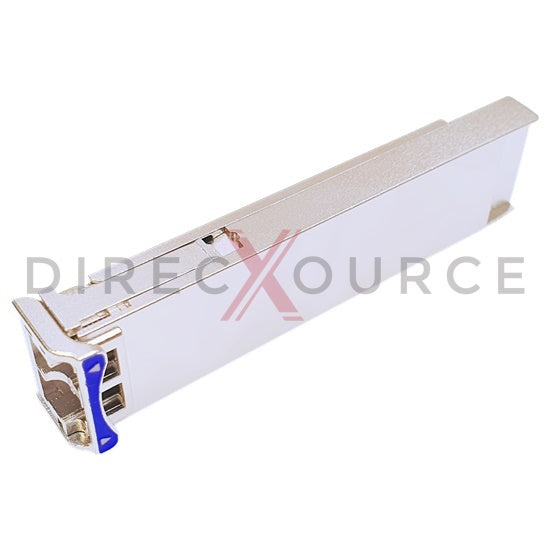

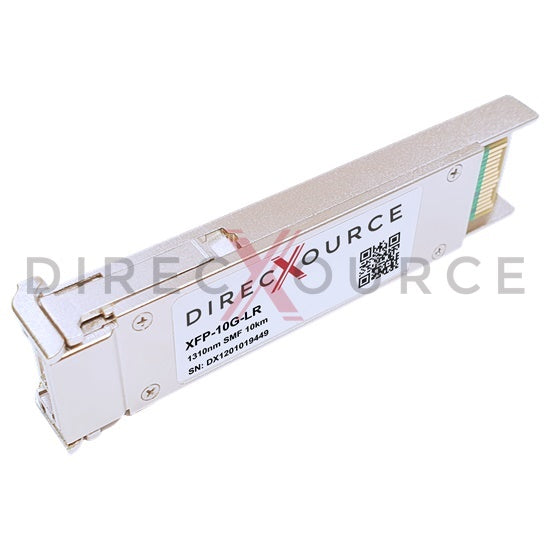

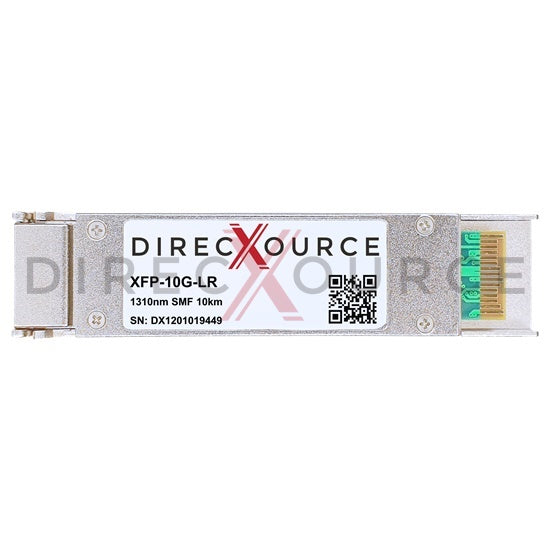

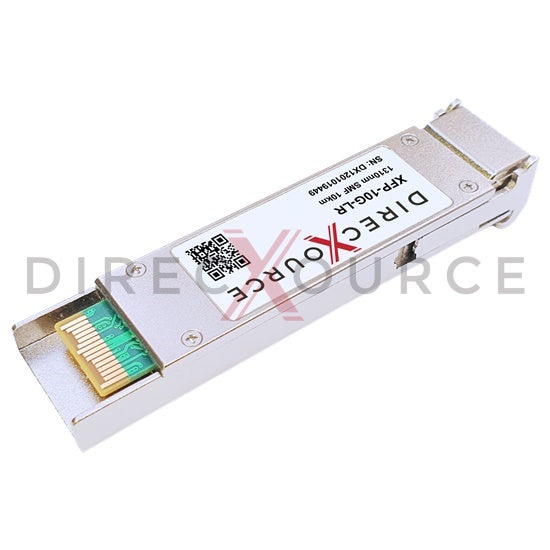

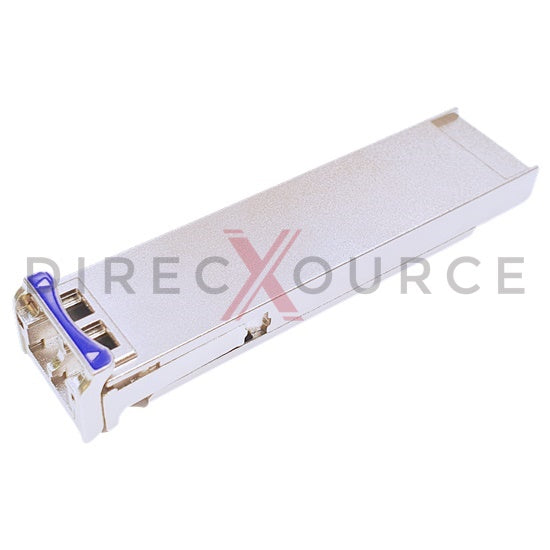

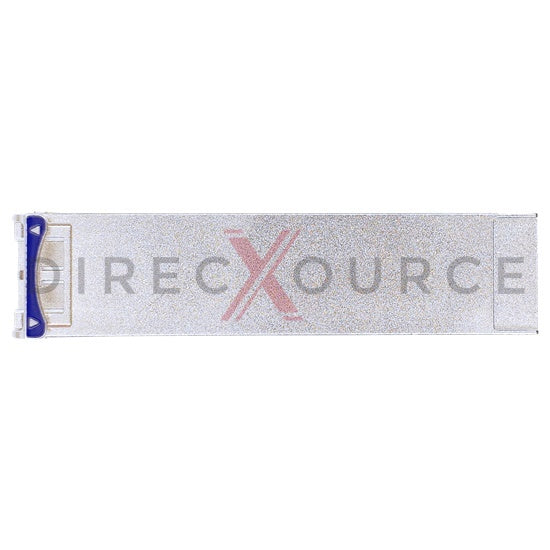

Avago HFCT-701XPD Compatible 10GBASE-LR XFP 1310nm 10km SMF LC DOM Optical Transceiver Module
Avago HFCT-701XPD compatible optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP module for use in 10GBASE Ethernet. XFP LR provides 10Gb/s throughput up to 10km over single-mode fiber (SMF) using 1310nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-LR and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable DFB transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Avago HFCT-701XPD transceivers.
Feature
- Equivalent to Avago HFCT-701XPD in function
- Hot pluggable XFP form factor
- Data rate up to 10.3Gbps
- 1310nm DFB transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 10km
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 2W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with INF-8077i
- Compliant with IEEE 802.3ae 10GBASE-LR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- 10G SONET/SDH
Specification
Avago Compatible P/N | HFCT-701XPD | Form Factor | XFP |
Max Data Rate | 10.3Gbps | Max Distance | 10km (6.2 miles) |
Wavelength | 1310nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DFB | Receiver Type | PIN |
Transmitter Power | -6 to 0dBm | Receiver Sensitivity | < -14.5dBm |
Extinction Ratio | 3.5dB | Receiver Overload | 0.5dBm |
Transmit and Dispersion Penalty | 3.2dB | Power Budget | 8.5dB |
OE Packaging | Coaxial Packaging | Modulation Format | NRZ |
Power Consumption | 2W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
