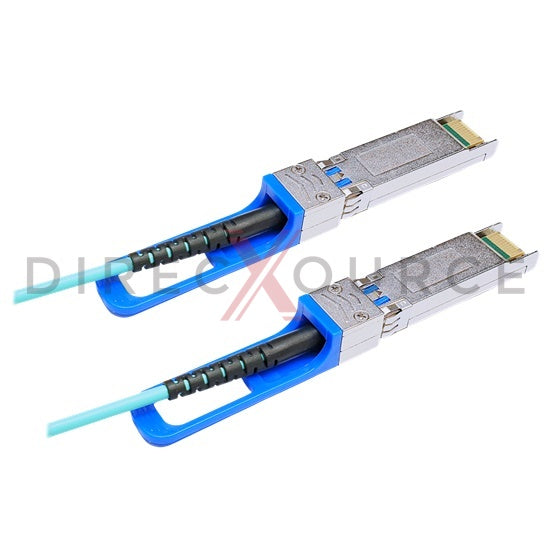

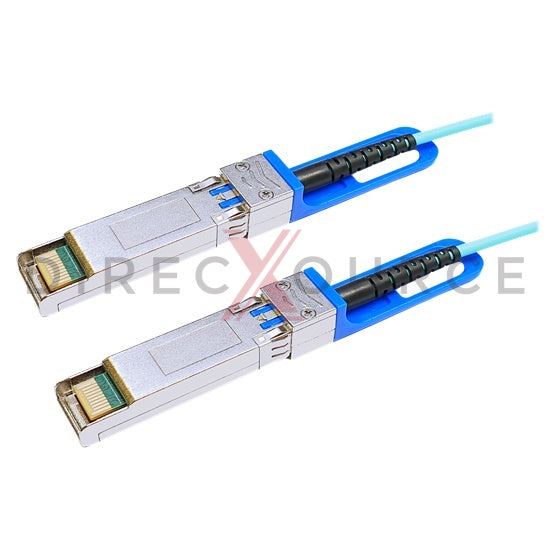

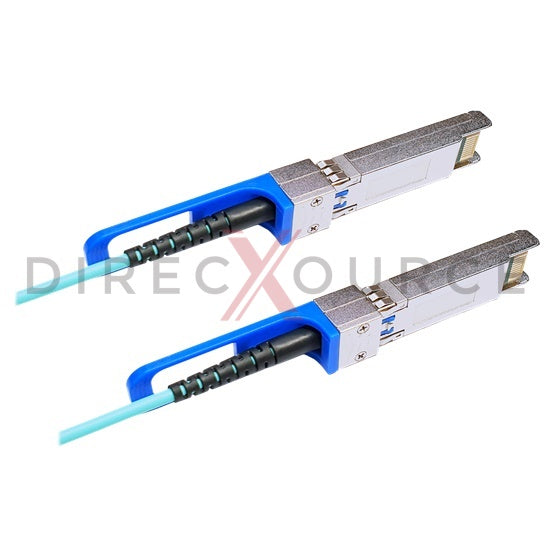

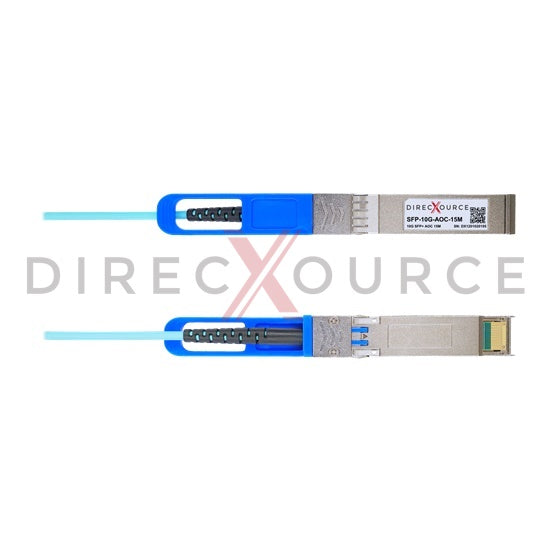

15m (49.21ft) Avago AFBR-2CAR15Z Compatible 10G SFP+ Active Optical Cable

Original price $77.00
Current price $46.00
SKU

15m (49.21ft) Avago AFBR-2CAR15Z Compatible 10G SFP+ Active Optical Cable


Avago AFBR-2CAR15Z compatible AOC is a 10Gbps SFP+ to SFP+ active optical cable for use in 10GBASE Ethernet. SFP+ AOC provides 10Gb/s throughput for 15m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. This AOC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The active optical cable is pre-terminated with MSA compliant 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Avago AFBR-2CAR15Z direct attach cables.


Feature

  • Equivalent to Avago AFBR-2CAR15Z in function
  • Hot Pluggable SFP+ to SFP+ Topology
  • Data rate up to 10.3Gbps
  • Pre-terminated Multi-mode fiber cable
  • 10.3125Gbps SFI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3ae 10GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • Data Center

Specification

Avago Compatible P/N AFBR-2CAR15Z Topology SFP+ to SFP+
Max Data Rate 10Gbps Cable Length 15m (49.21ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner None
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
