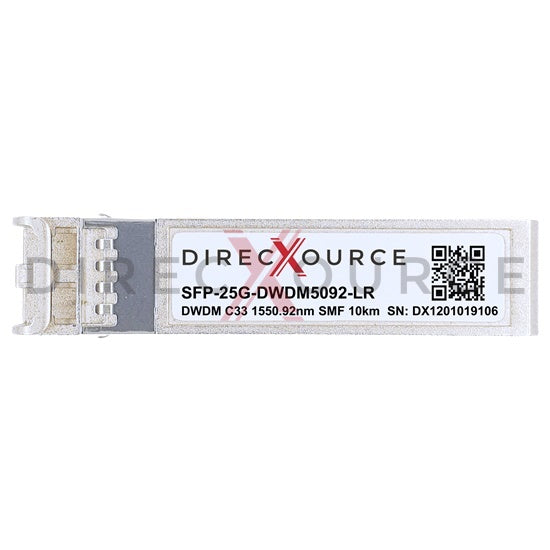

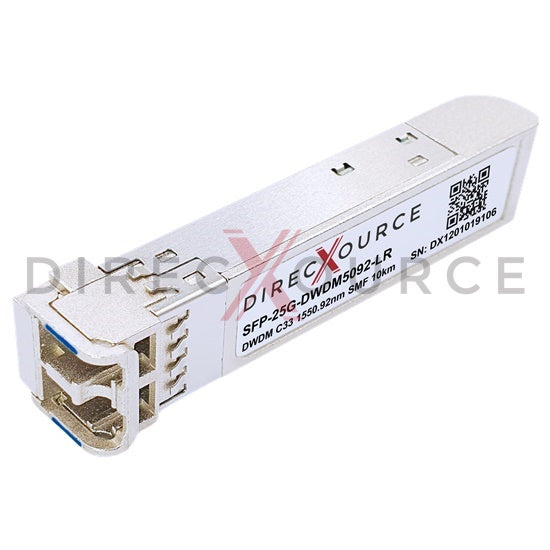

Arista Networks SFP28-25G-DL-50.92 Compatible 25GBASE-DWDM SFP28 100GHz C33 1550.92nm 10km SMF LC DOM Optical Transceiver Module
Arista Networks SFP28-25G-DL-50.92 compatible optical transceiver is a dual fiber 25.8Gbps Small Form-factor Pluggable SFP28 DWDM module for use in 25GBASE Ethernet. SFP28 DWDM5092-LR provides 25Gb/s throughput up to 10km over single-mode fiber (SMF) with host FEC using C33 1550.92nm wavelength. This transceiver is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3 25GBASE-DWDM and 25GAUI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP28 transceiver features highly reliable DWDM EML transmitter and PIN photo detector to offer high performance interconnection at 25 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Arista Networks SFP28-25G-DL-50.92 transceivers.
Feature
- Equivalent to Arista Networks SFP28-25G-DL-50.92 in function
- Hot pluggable SFP28 form factor
- Data rate up to 25.8Gbps
- C33 1550.92nm DWDM EML transmitter
- PIN photo receiver
- Duplex LC optical connector
- Link distances up to SMF 10km with host FEC
- Internal CDR on both Transmitter and Receiver channels
- Built-in digital diagnostic via 2-wire interface
- Single 3.3V power supply voltage
- Power consumption < 2W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3 25GBASE-DWDM
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 25G Ethernet
- Data Center
Specification
Arista Networks Compatible P/N | SFP28-25G-DL-50.92 | Form Factor | SFP28 |
Max Data Rate | 25.8Gbps | Max Distance | 10km (6.2 miles) |
Wavelength | 1550.92nm | Connector | Duplex LC |
DDM/DOM | Support | Media | SMF |
Transmitter Type | DWDM EML | Receiver Type | PIN |
Transmitter Power | -2 to 6dBm | Receiver Sensitivity | < -12dBm |
Extinction Ratio | 4dB | Receiver Overload | 2dBm |
Transmit and Dispersion Penalty | 3.5dB | Power Budget | 10dB |
OE Packaging | Box Packaging | Signal Conditioner | Retimer for TX and RX |
Modulation Format | NRZ | Host FEC | Support |
Power Consumption | 2W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
