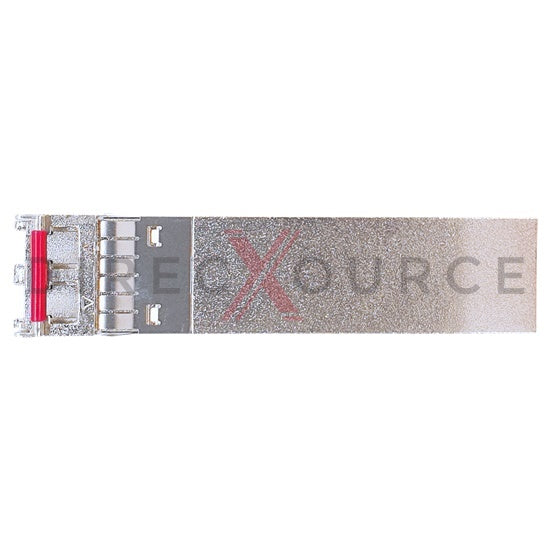

Arista Networks SFP-10G-DW-61.42-I Compatible Industrial 10GBASE-DWDM SFP+ 100GHz C20 1561.42nm 40km SMF LC DOM Optical Transceiver Module

Original price $444.00
Current price $266.00
SKU

Compatible Brand Options

Arista Networks Compatible Industrial 10G DWDM SFP+ Transceiver Series

Arista Networks SFP-10G-DW-61.42-I Compatible Industrial 10GBASE-DWDM SFP+ 100GHz C20 1561.42nm 40km SMF LC DOM Optical Transceiver Module


Arista Networks SFP-10G-DW-61.42-I compatible optical transceiver is an industrial dual fiber 10.3Gbps Small Form-factor Pluggable SFP+ DWDM module for use in 10GBASE Ethernet. SFP+ DWDM6142-ER-I provides 10Gb/s throughput up to 40km over single-mode fiber (SMF) using 1561.42nm wavelength. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex SFP+ transceiver features highly reliable DWDM EML transmitter and PIN photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Arista Networks SFP-10G-DW-61.42-I transceivers.


Feature

  • Equivalent to Arista Networks SFP-10G-DW-61.42-I in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • C20 1561.42nm DWDM EML transmitter
  • PIN photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 40km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1.5W
  • Ambient temperature range -40 to 85°C for industrial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3 10GBASE-DWDM
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

Arista Networks Compatible P/N SFP-10G-DW-61.42-I Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 40km (24.9 miles)
Wavelength 1561.42nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type DWDM EML Receiver Type PIN
Transmitter Power -1 to 4dBm Receiver Sensitivity < -16dBm
Extinction Ratio 8.2dB Receiver Overload -1dBm
Transmit and Dispersion Penalty 2dB Power Budget 15dB
OE Packaging Box Packaging Modulation Format NRZ
Power Consumption 1.5W Industrial Temperature Range -40 to 85°C (-40 to 185°F)
