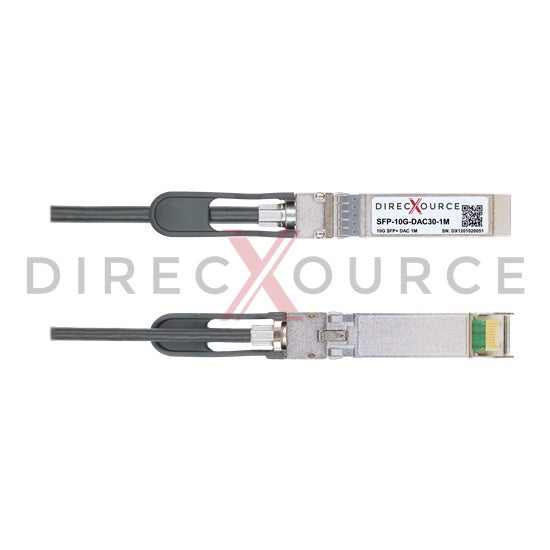

1m (3.28ft) Arista Networks CAB-SFP-SFP-1M Compatible 10G SFP+ Passive Direct Attach Twinax Copper Cable
Arista Networks CAB-SFP-SFP-1M compatible DAC is a passive 10Gbps SFP+ to SFP+ direct attach cable for use in 10GBASE Ethernet. SFP+ DAC provides 10Gb/s throughput for 1m interconnection with high speed twin-axial copper cable. Standard length options cover from 0.5 meters to 7 meters. This DAC is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3ae 10GBASE-CR and SFI standard. The twin-axial copper cable's wire gauge is 30AWG and pre-terminated with MSA compliant 20-pin edge type connectors. MSA memory map are accessible via 2-wire Interface (TWI/I2C). Our DACs are factory pre-programmed for compatibility, perform identically to original Arista Networks CAB-SFP-SFP-1M direct attach cables.
Feature
- Equivalent to Arista Networks CAB-SFP-SFP-1M in function
- Hot Pluggable SFP+ to SFP+ Topology
- Data rate up to 10.3Gbps
- Pre-terminated 30AWG twin-axial copper cable
- 10.3125Gbps SFI electrical interface
- Minimum bending radius 23mm
- MSA memory accessible via 2-wire interface
- Single 3.3V power supply voltage
- Extremely low power consumption near 0W
- Ambient temperature range 0 to 70°C for commercial application
- Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
- Compliant with IEEE 802.3ae 10GBASE-CR
- Compliant with RoHS, REACH, CE, FCC standards
Application
- 10G Ethernet
- Data Center
Specification
Arista Networks Compatible P/N | CAB-SFP-SFP-1M | Topology | SFP+ to SFP+ |
Max Data Rate | 10Gbps | Cable Length | 1m (3.28ft) |
Cable Type | Twinax | Wire Gauge | 30AWG |
Jacket Meterial | OFNR (PVC) | Minimum Bend Radius | 23mm |
Power Consumption | 0W | Commercial Temperature Range | 0 to 70°C (32 to 158°F) |
