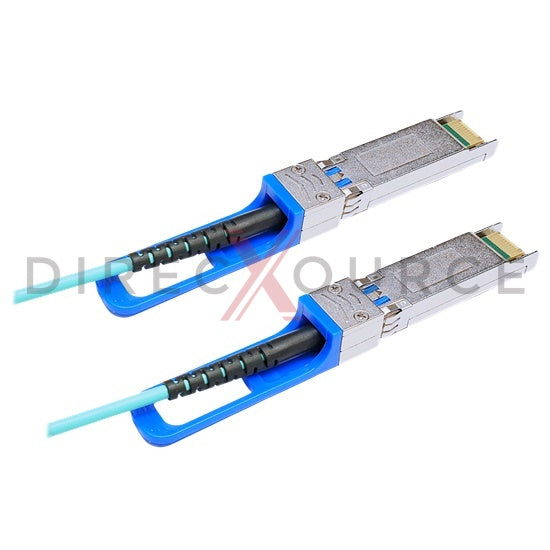

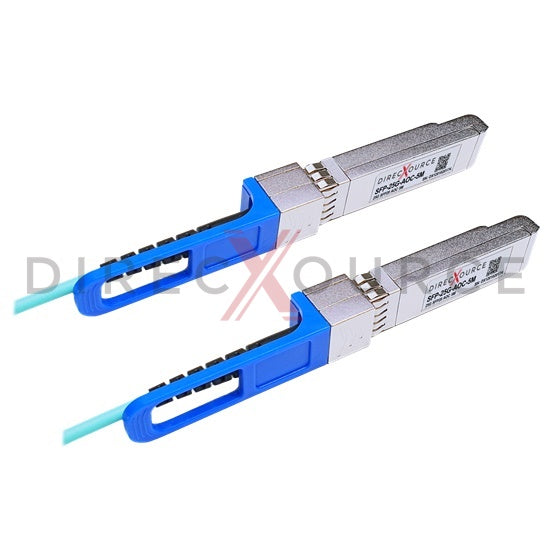

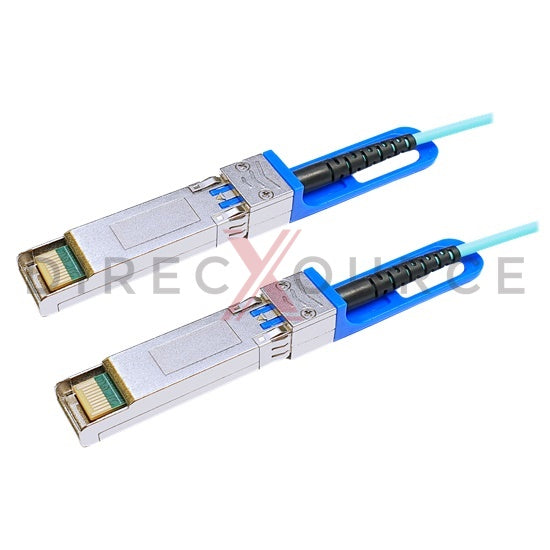

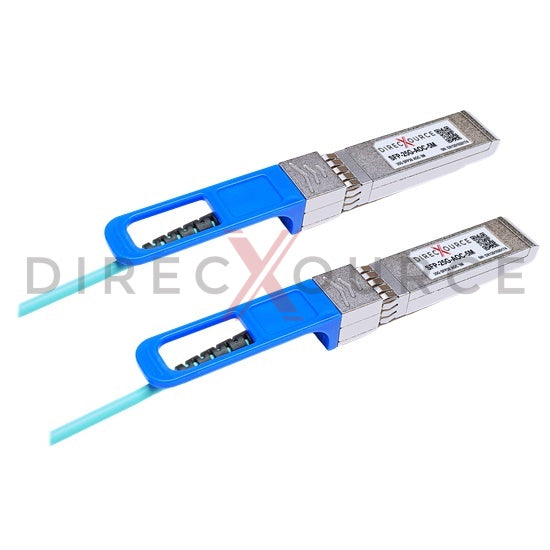

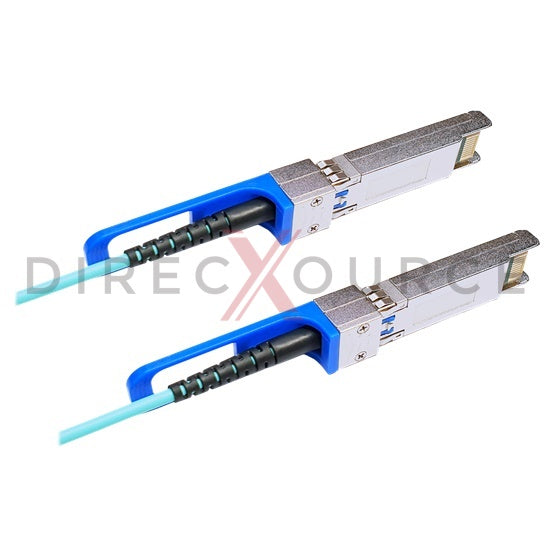

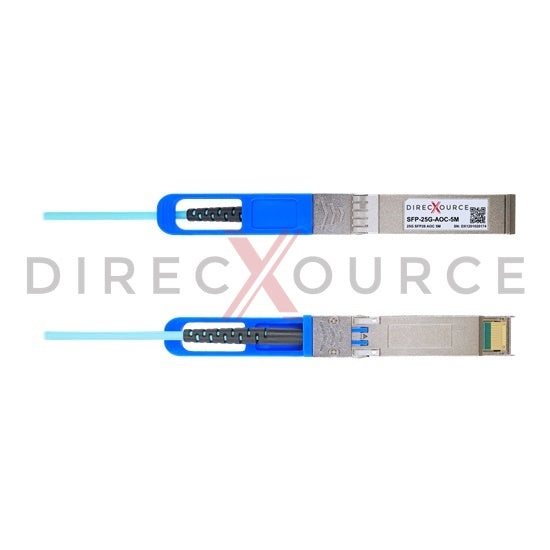

5m (16.4ft) Arista Networks AOC-S-S-25G-5M Compatible 25G SFP28 Active Optical Cable

Original price $135.00
Current price $81.00
SKU

5m (16.4ft) Arista Networks AOC-S-S-25G-5M Compatible 25G SFP28 Active Optical Cable


Arista Networks AOC-S-S-25G-5M compatible AOC is a 25Gbps SFP28 to SFP28 active optical cable for use in 25GBASE Ethernet. SFP28 AOC provides 25Gb/s throughput for 5m interconnection with laser-optimized multi-mode fiber optical cable. Standard length options cover from 1 meter to 30 meters. This AOC is fully compliant with SFP28 Multi-Source Agreement (MSA), IEEE 802.3by 25GBASE-CR and 25GAUI standard. The active optical cable is pre-terminated with MSA compliant 20-pin edge type connectors. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our AOCs are factory pre-programmed for compatibility, perform identically to original Arista Networks AOC-S-S-25G-5M direct attach cables.


Feature

  • Equivalent to Arista Networks AOC-S-S-25G-5M in function
  • Hot Pluggable SFP28 to SFP28 Topology
  • Data rate up to 25.8Gbps
  • Pre-terminated Multi-mode fiber cable
  • 25.78125Gbps NRZ retimed 25GUAI electrical interface
  • Minimum bending radius 7.5mm
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 1W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8402, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3by 25GBASE-CR
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 25G Ethernet
  • Data Center

Specification

Arista Networks Compatible P/N AOC-S-S-25G-5M Topology SFP28 to SFP28
Max Data Rate 25Gbps Cable Length 5m (16.4ft)
Cable Type OM3 Multi Mode Fiber Jacket Meterial OFNP
Minimum Bend Radius 7.5mm Signal Conditioner Retimer for TX and RX
Modulation Format NRZ Host FEC Support
Power Consumption 1W Commercial Temperature Range 0 to 70°C (32 to 158°F)
