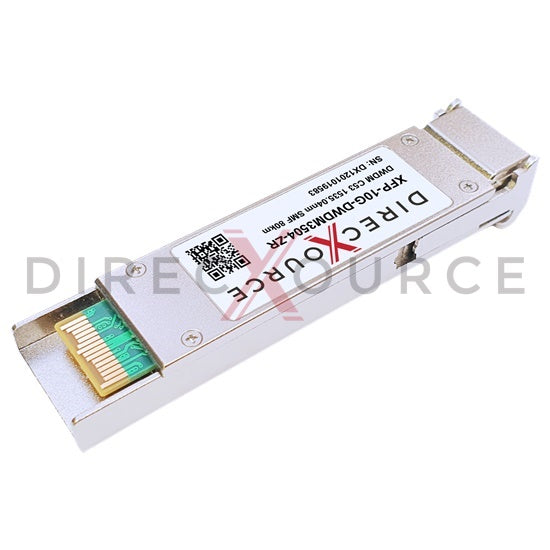

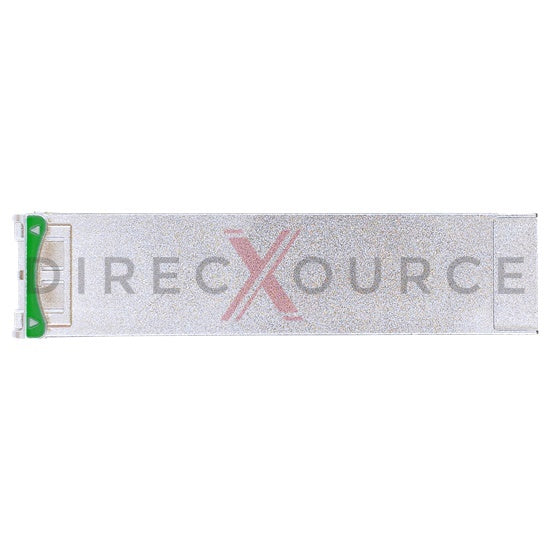

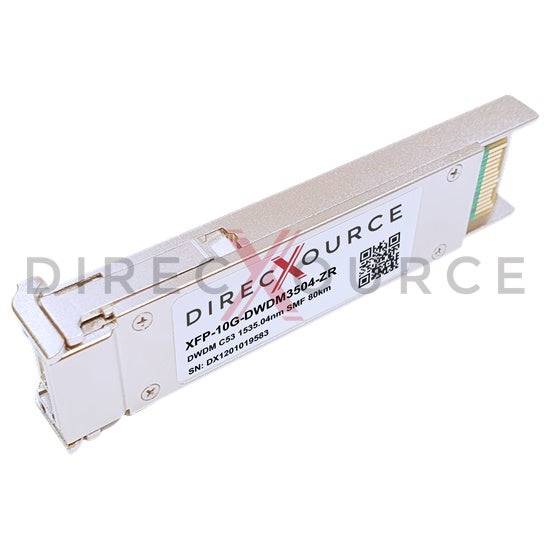

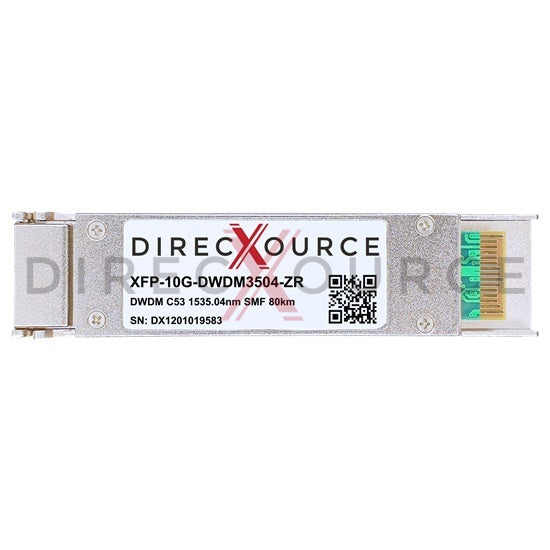

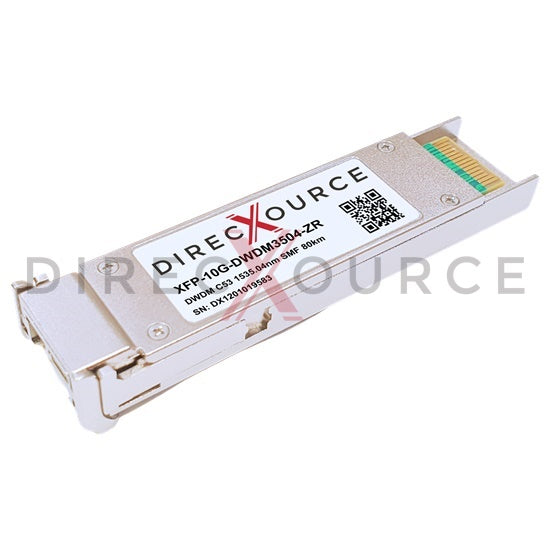

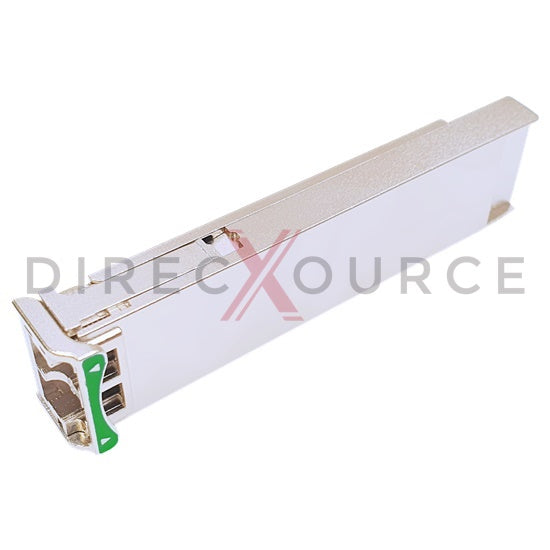

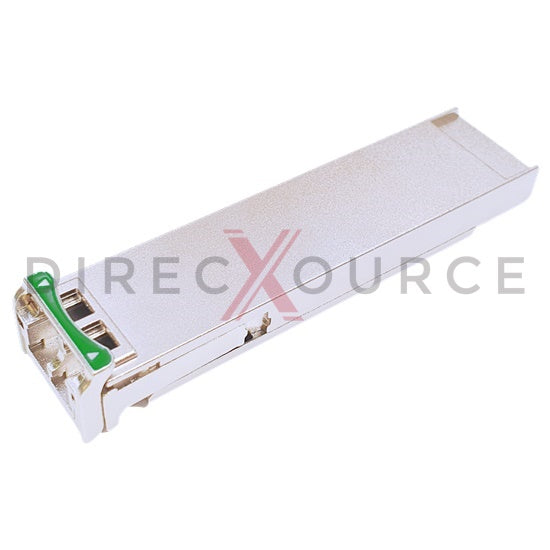

Alcatel-Lucent XFP-10G-DWDM-53 Compatible 10GBASE-DWDM XFP 100GHz C53 1535.04nm 80km SMF LC DOM Optical Transceiver Module


Alcatel-Lucent XFP-10G-DWDM-53 compatible optical transceiver is a dual fiber 10.3Gbps Form-factor Pluggable XFP DWDM module for use in 10GBASE Ethernet. XFP DWDM3504-ZR provides 10Gb/s throughput up to 80km over single-mode fiber (SMF) using 1535.04nm wavelength. This transceiver is fully compliant with XFP Multi-Source Agreement (MSA), IEEE 802.3 10GBASE-DWDM and XFI standard. Its electrical interface is MSA compliant 30-pin edge type connector and the optical interface is Duplex LC connector. The full-duplex XFP transceiver features highly reliable DWDM EML transmitter and APD photo detector to offer high performance interconnection at 10 Gbps data rate. Built-in Digital Diagnostic Monitoring (DDM) support is present for real-time performance monitoring via 2-wire Interface (TWI/I2C). Our modules are factory pre-programmed for compatibility, perform identically to original Alcatel-Lucent XFP-10G-DWDM-53 transceivers.


Feature

  • Equivalent to Alcatel-Lucent XFP-10G-DWDM-53 in function
  • Hot pluggable XFP form factor
  • Data rate up to 10.3Gbps
  • C53 1535.04nm DWDM EML transmitter
  • APD photo receiver
  • Duplex LC optical connector
  • Link distances up to SMF 80km
  • Built-in digital diagnostic via 2-wire interface
  • Single 3.3V power supply voltage
  • Power consumption < 3.5W
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with INF-8077i
  • Compliant with IEEE 802.3 10GBASE-DWDM
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G SONET/SDH

Specification

Alcatel-Lucent Compatible P/N XFP-10G-DWDM-53 Form Factor XFP
Max Data Rate 10.3Gbps Max Distance 80km (49.7 miles)
Wavelength 1535.04nm Connector Duplex LC
DDM/DOM Support Media SMF
Transmitter Type DWDM EML Receiver Type APD
Transmitter Power -1 to 4dBm Receiver Sensitivity < -24dBm
Extinction Ratio 9dB Receiver Overload -7dBm
Transmit and Dispersion Penalty 3dB Power Budget 23dB
OE Packaging Box Packaging Modulation Format NRZ
Power Consumption 3.5W Commercial Temperature Range 0 to 70°C (32 to 158°F)
