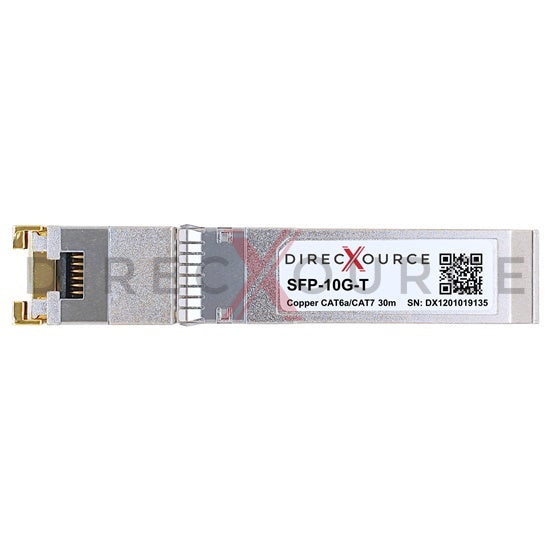

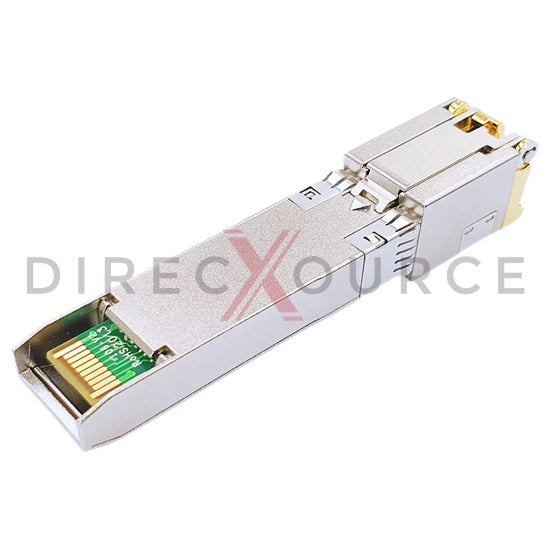

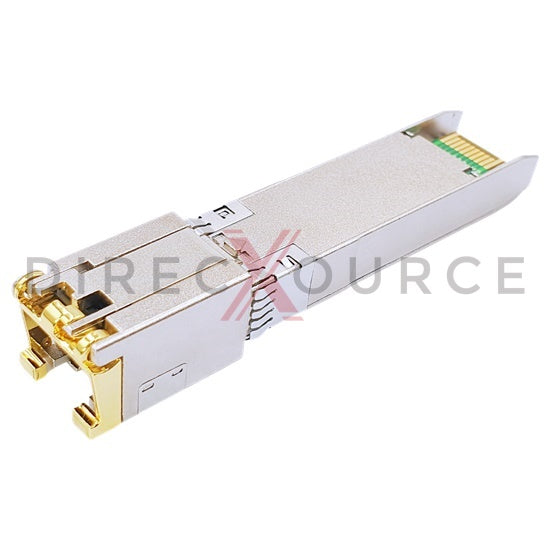

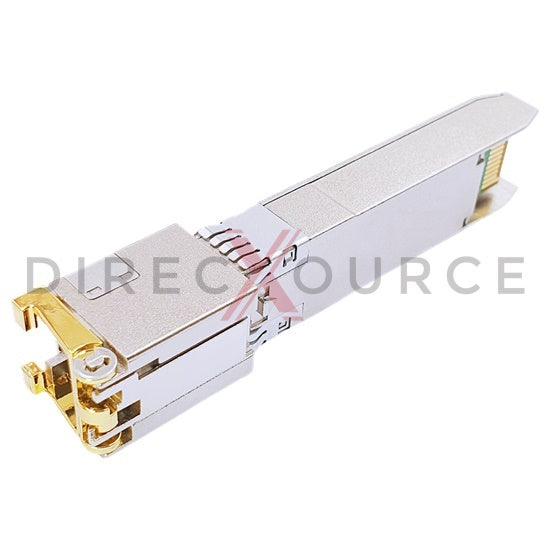

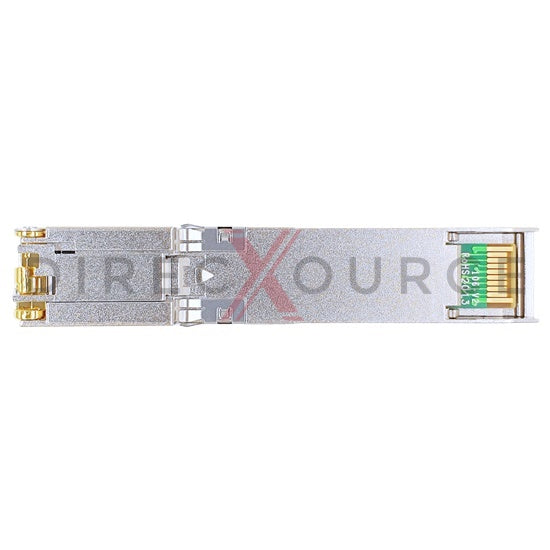

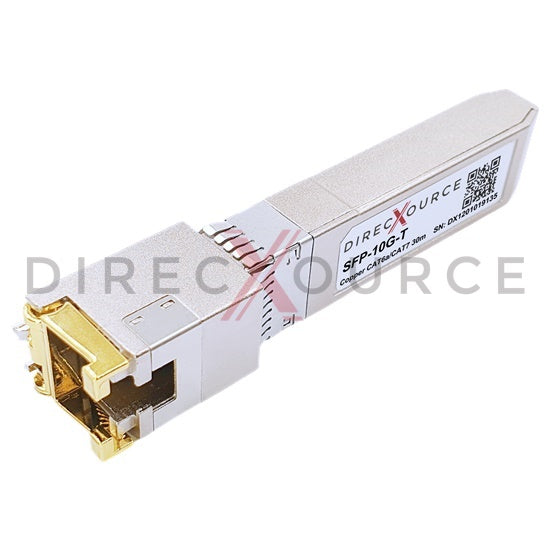

Alcatel-Lucent iSFP-10G-T Compatible 10GBASE-T SFP+ RJ45 30m CAT6a/CAT7 Copper Transceiver Module


Alcatel-Lucent iSFP-10G-T compatible copper transceiver is a single channel 10.3Gbps Small Form-factor Pluggable SFP+ module for use in 10GBASE Ethernet. SFP+ 10G-T provides 10Gb/s throughput up to 30 meters over CAT6a/CAT7 twisted network cable. It is also backward compatible with 10M/100M/1000M/2.5G/5GBASE-T applications. This transceiver is fully compliant with SFP+ Multi-Source Agreement (MSA), IEEE 802.3an 10GBASE-T and SFI standard. Its electrical interface is MSA compliant 20-pin edge type connector and the line-side interface is RJ45 connector. The full-duplex SFP+ transceiver offers high performance interconnection at 10 Gbps data rate. Low power consumption (2.3W for 30m), compatible with various brands of hosts, widely used in data centers and enterprise networks. Our modules are factory pre-programmed for compatibility, perform identically to original Alcatel-Lucent iSFP-10G-T transceivers.


Feature

  • Equivalent to Alcatel-Lucent iSFP-10G-T in function
  • Hot pluggable SFP+ form factor
  • Data rate up to 10.3Gbps
  • Conversion between host-side 10GBASE-R and line-side 10GBSAE-T
  • RJ45 connector
  • Auto-sense MDI/MDIX and auto-negotiation
  • Backward compatible to 1000BASE-T/2.5GBASE-T/5GBASE-T
  • Supports 10GBASE-T using 30m Cat 6a/7 cable
  • Supports 5GBASE-T using 70m Cat 5e cable
  • Supports 2.5GBASE-T using 100m Cat 5e cable
  • Supports 1000BASE-T using 100m Cat 5e cable
  • MSA memory accessible via 2-wire interface
  • Single 3.3V power supply voltage
  • Low power consumption (2.3W TYP @10Gbps 30m)
  • Ambient temperature range 0 to 70°C for commercial application
  • Compliant with SFF-8431, SFF-8432, SFF-8419, SFF-8472
  • Compliant with IEEE 802.3an 10GBASE-T
  • Compliant with IEEE 802.3bx 5GBASE-T/2.5GBASE-T
  • Compliant with IEEE 802.3ab 1000BASE-T
  • Compliant with RoHS, REACH, CE, FCC standards

Application

  • 10G Ethernet
  • 10G Fibre Channel
  • 10G CPRI
  • 10G SONET/SDH

Specification

Alcatel-Lucent Compatible P/N iSFP-10G-T Form Factor SFP+
Max Data Rate 10.3Gbps Max Distance 30m (98ft)
Connector RJ45 Media CAT6a/CAT7
Modulation Format PAM16 DDM/DOM Not support
Power Consumption 2.3W Commercial Temperature Range 0 to 70°C (32 to 158°F)
